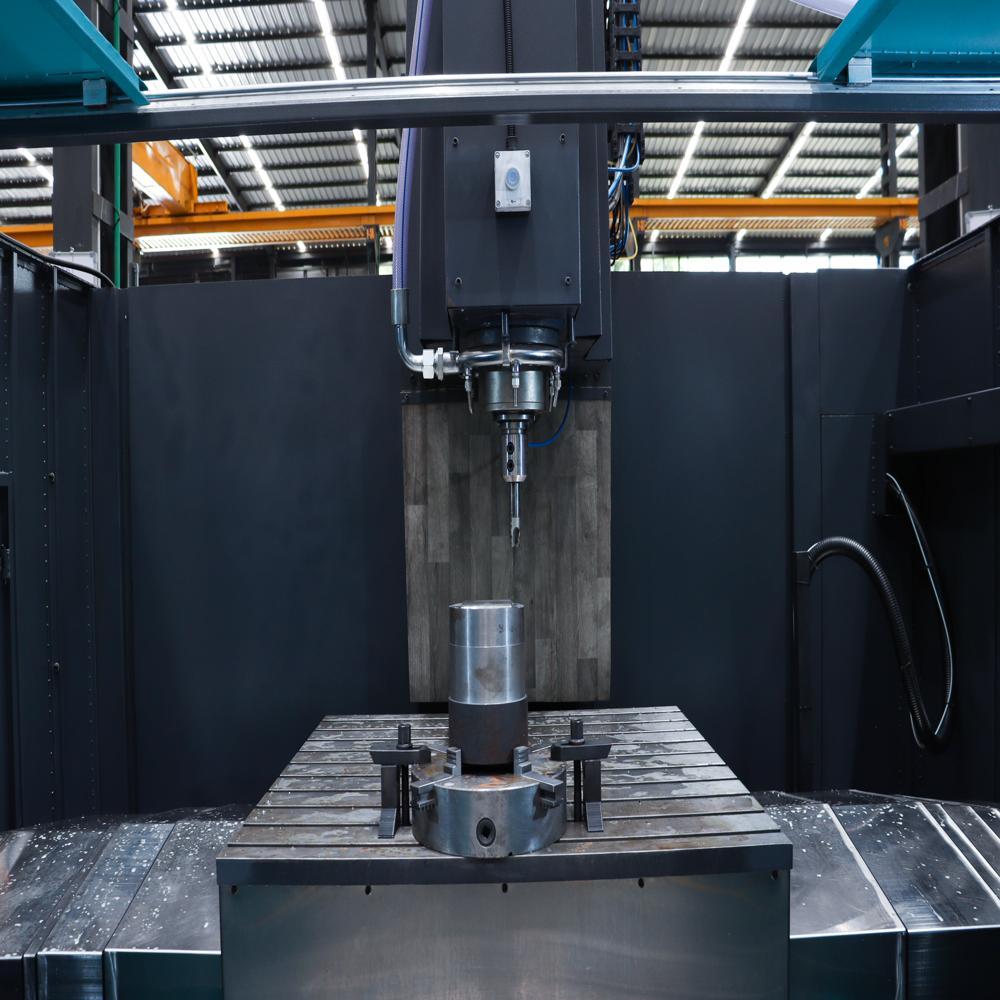

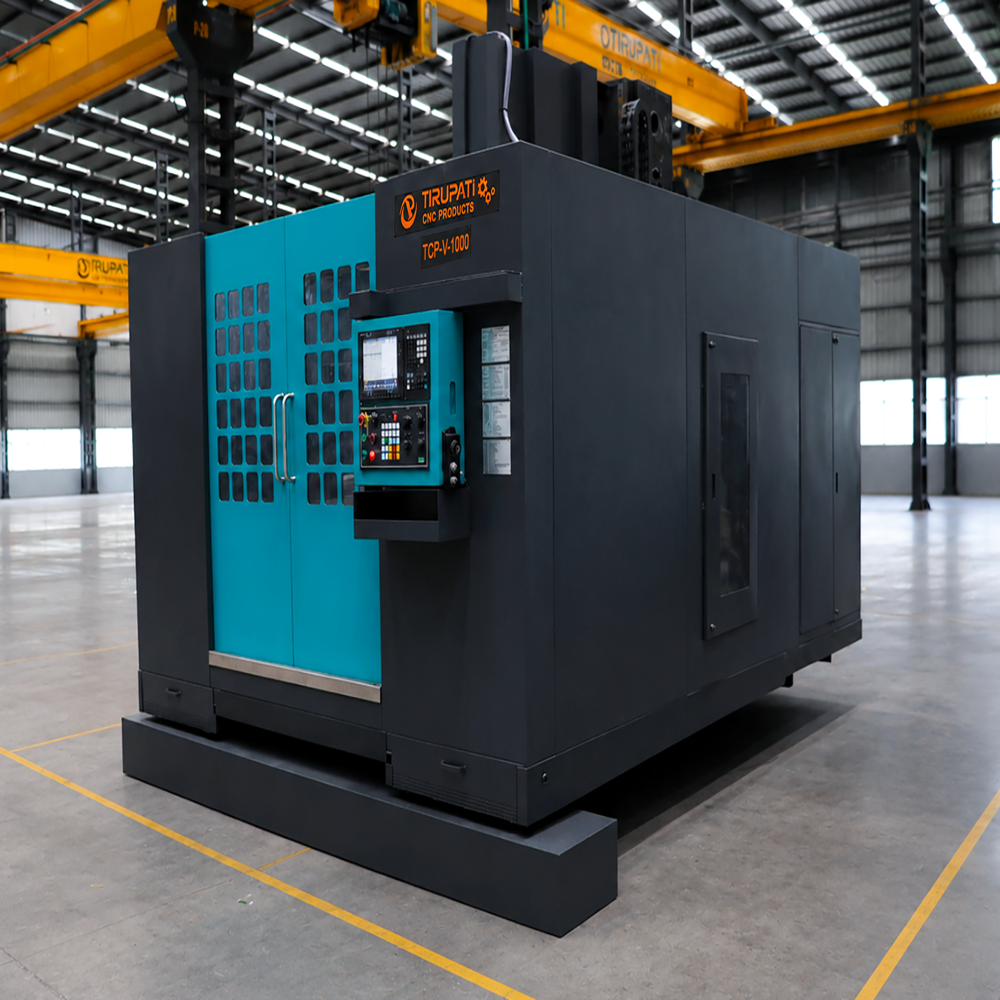

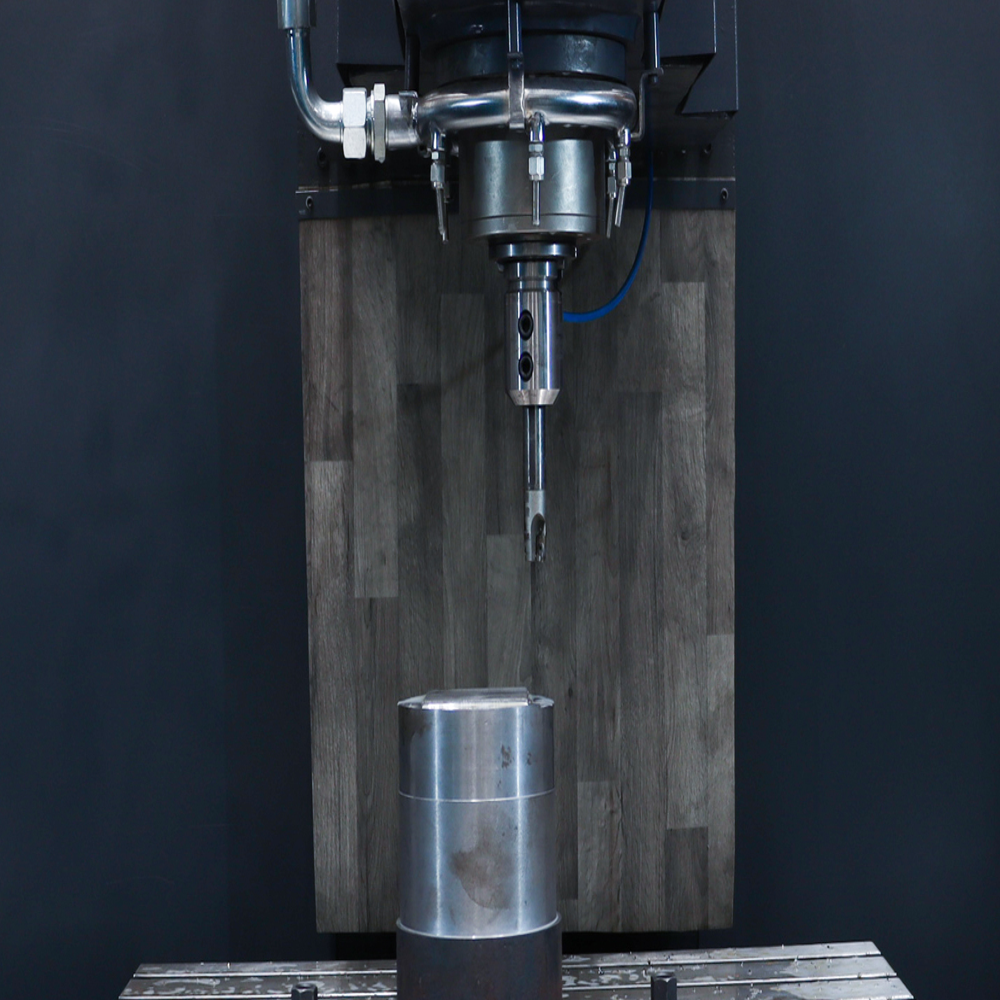

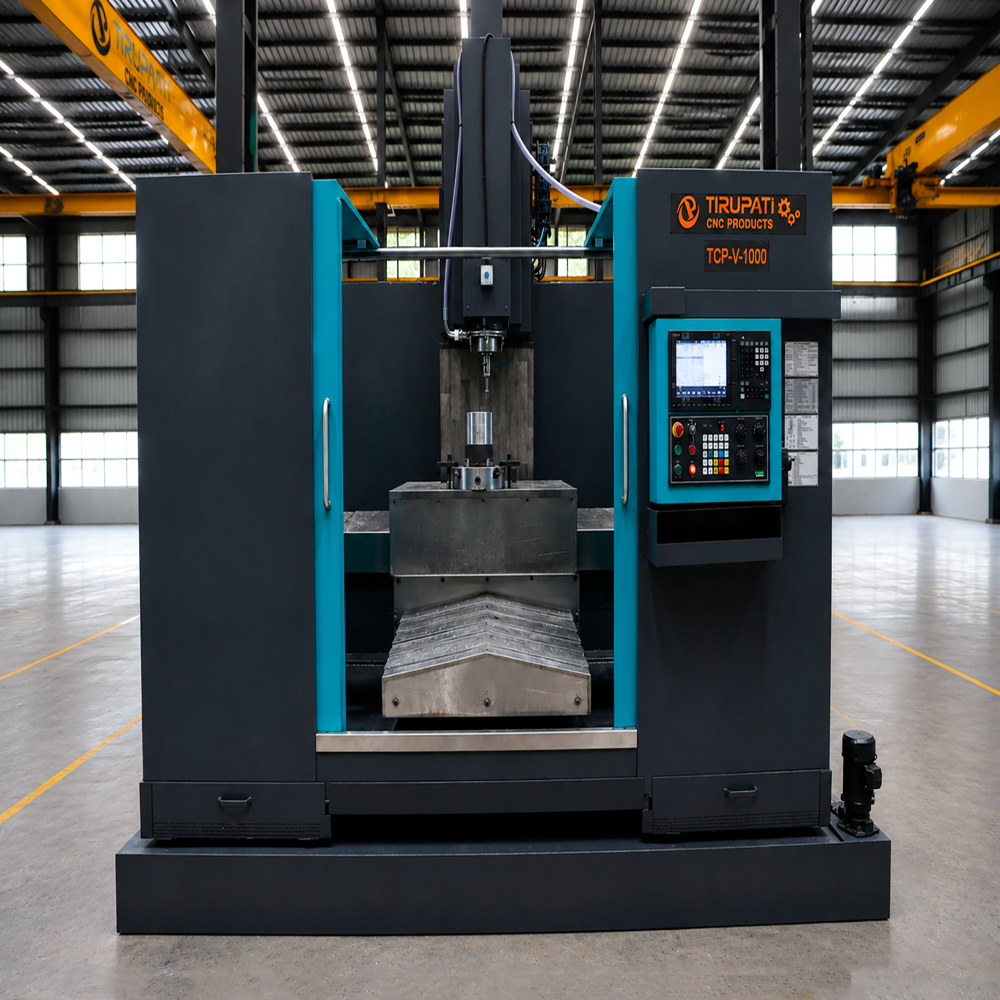

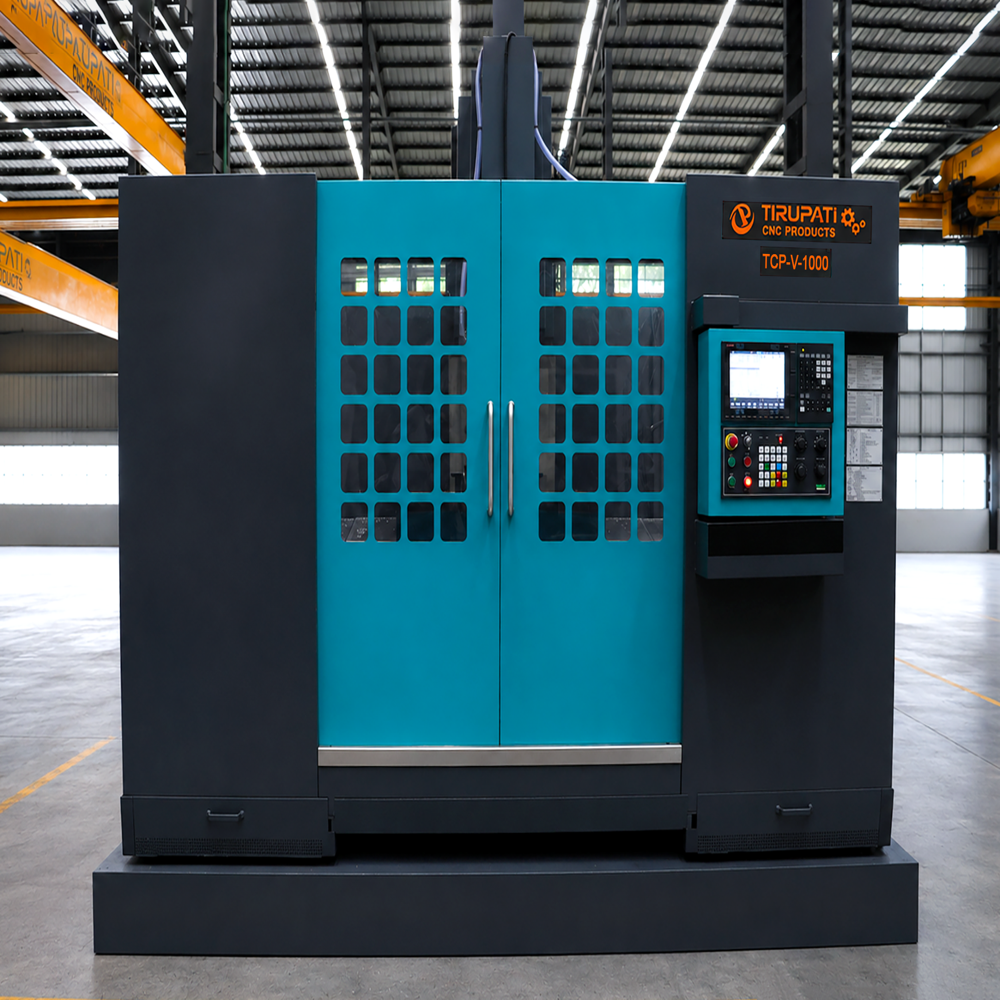

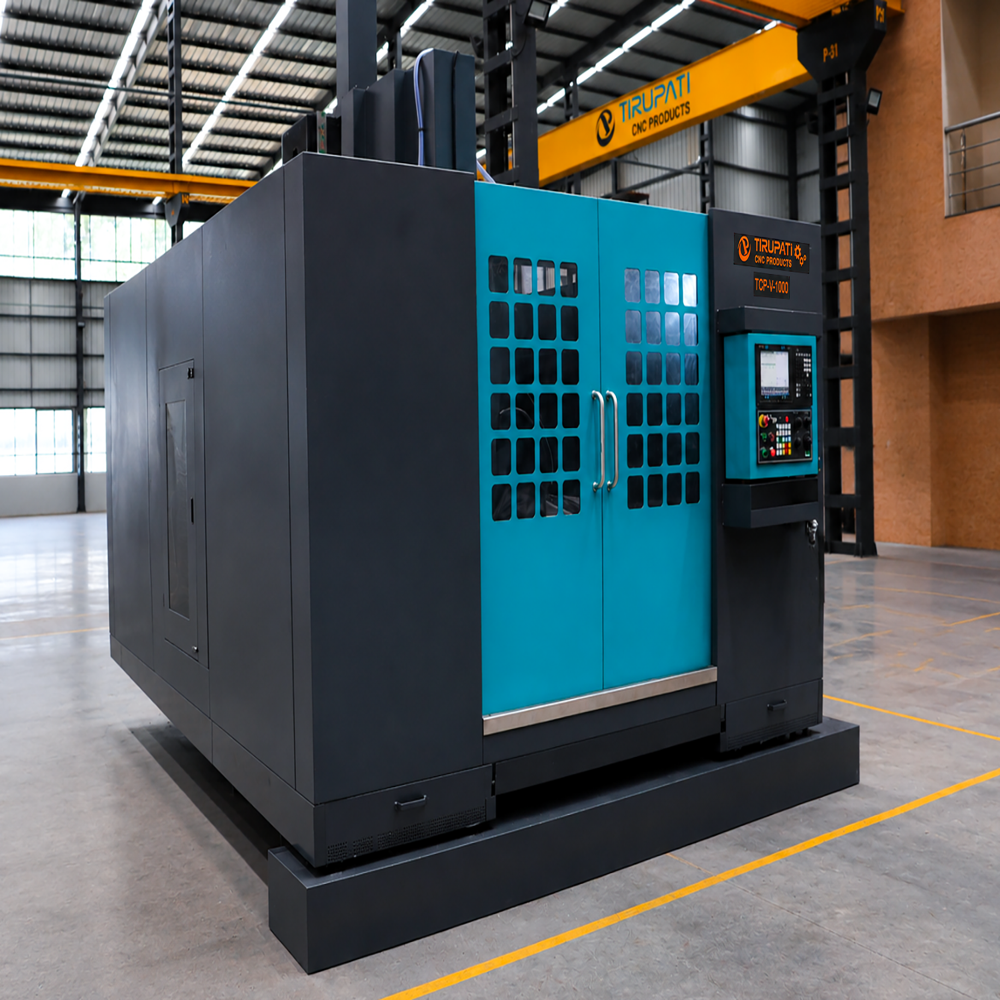

Max. Accomodate Dia. (Working) - OD 1000mm
Max. Drilling Capacity (U-Drill) - 55mm,
Width Of Base - 600mm,
Axis Travel ( X / Y / Z ) - 1000mm / 1000mm / 400mm
Axis Guideways ( X / Y / Z ) - Box Guideways / Hardened & Ground / 55 LM Guideways
Spindle To Chuck Distance - 350mm,
Table Size - 500 x 500
Clamping Chuck -  600 x 4 Jaw Manual Chuck,
Controller - Siemens 808D Milling,
Max. RPM - 4000RPM,
Spindle Main Motor - 15HP Servo Motor
Lubrication System - Auto,
Coolant - Coolant Through Spindle
Spindle - BT40 With Through Spindle,
Auto. Tool Changer - Pragati UATC - 12 - 12 Tool,
Overall Dimension (L x W x H) - 4000 x 3000 x 2800,
Apporoximate Weight -7500Kg.

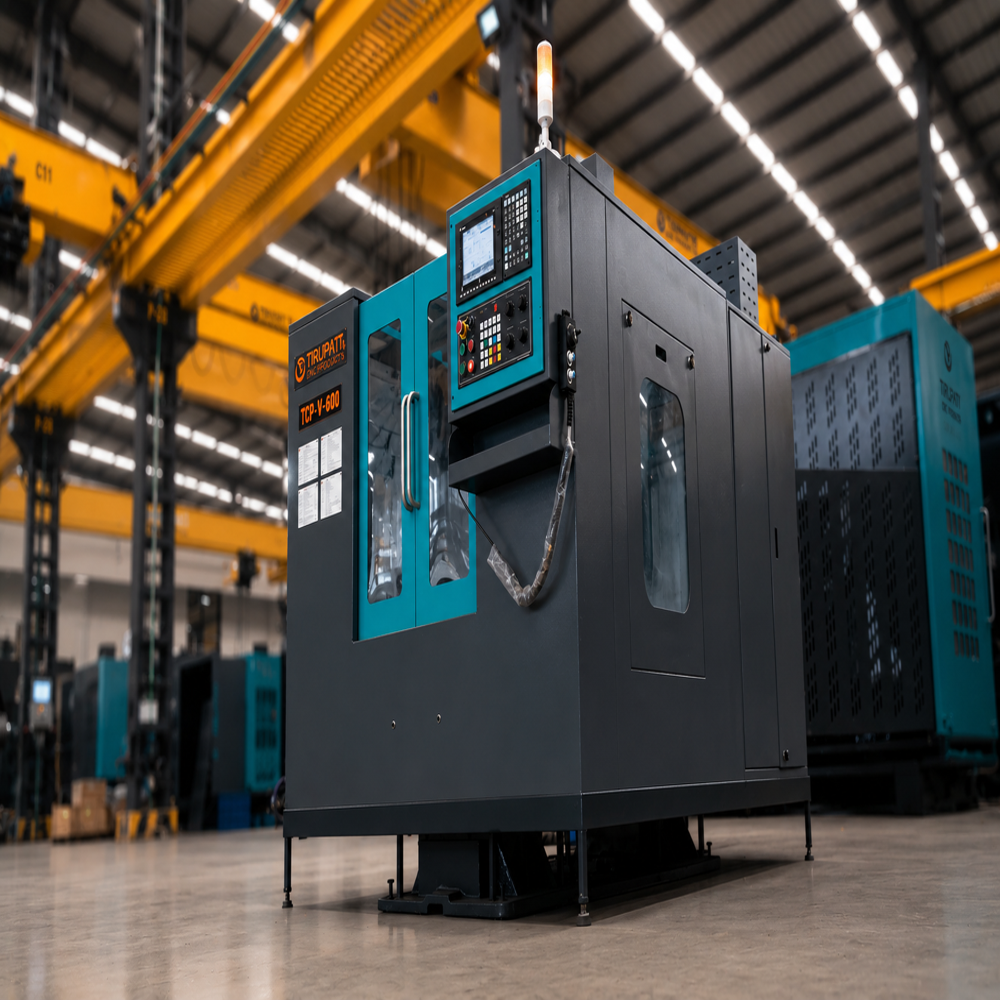

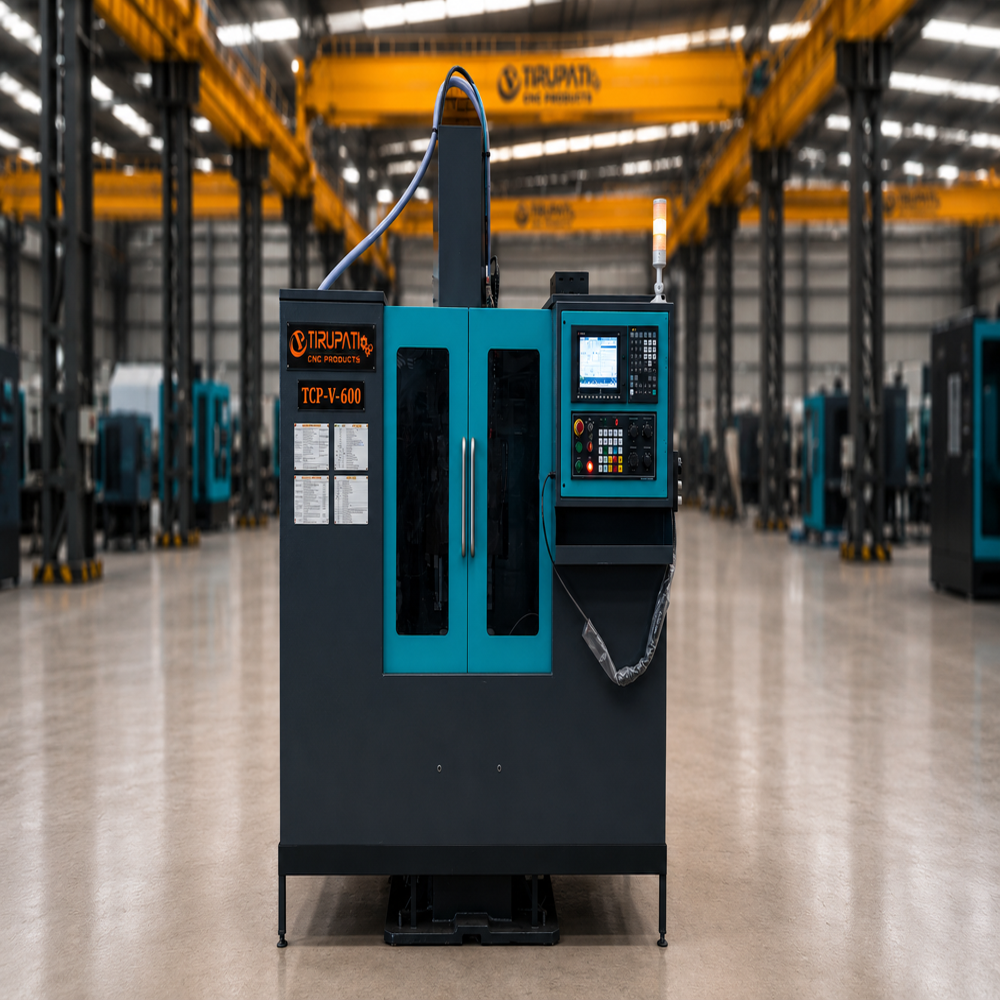

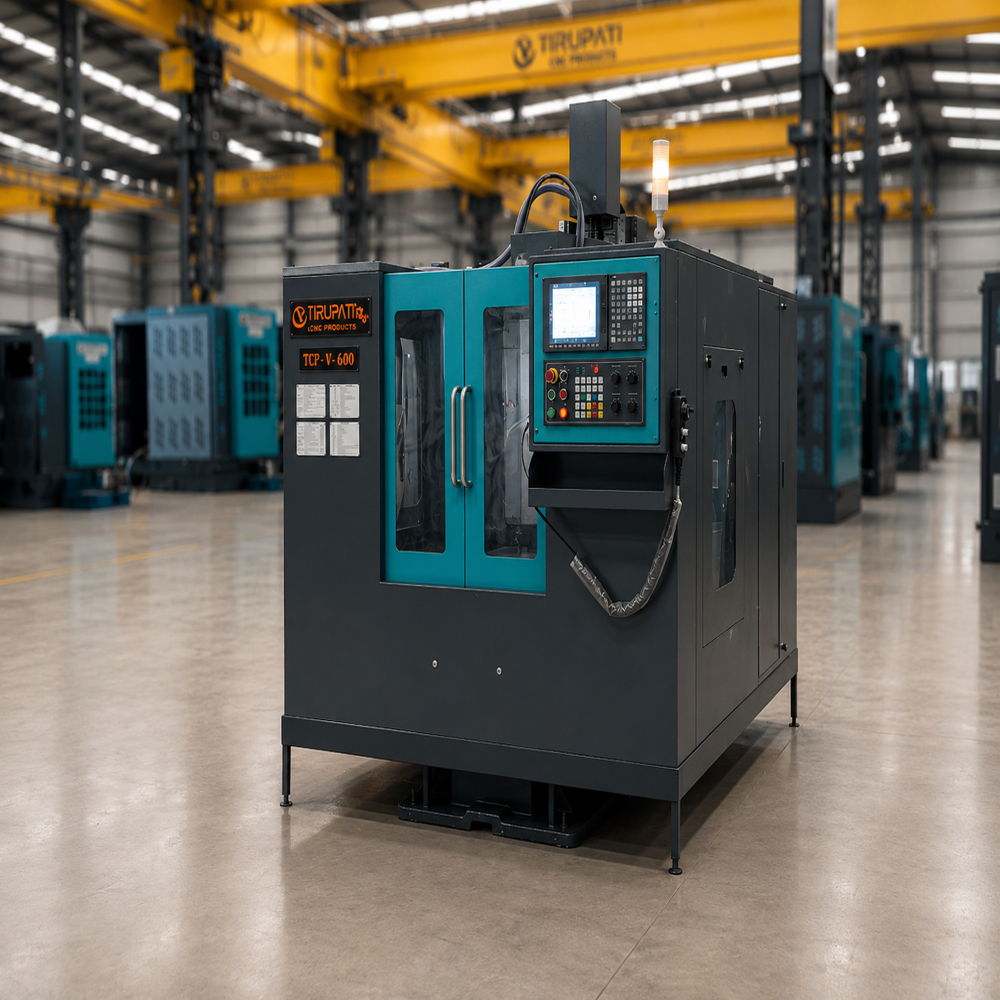

Max. Accomodate Dia. (Working) - OD 500mm
Max. Drilling Capacity (U-Drill) - 40mm,
Axis Travel ( X / Y / Z ) - 500mm / 500mm / 400mm

Max. Accomodate Dia. (Working) - OD 1000mm
Max. Drilling Capacity (U-Drill) - 55mm,
Axis Travel ( X / Y / Z ) - 1000mm / 1000mm / 400mm

Max. Accomodate Dia. (Working) - OD 500mm
Max. Drilling Capacity (U-Drill) - 40mm,
Width Of Base - 375mm,
Axis Travel ( X / Y / Z ) - 500mm / 500mm / 400mm
Axis Guideways ( X / Y / Z ) - Box Guideways / Hardened & Ground / 35 LM Guideways
Spindle To Chuck Distance - 300mm,
Table Size - 300 x 350
Clamping Chuck -  300 x 4 Jaw Manual Chuck,
Controller - Siemens 808D Milling,
Max. RPM - 4000RPM,
Spindle Main Motor - 7.5HP Servo Motor
Lubrication System - Auto,
Coolant - Coolant Through Spindle
Spindle - BT40 With Through Spindle,
Auto. Tool Changer - Pragati UATC - 12 - 12 Tool,
Overall Dimension (L x W x H) - 2800 x 1900 x 2350,
Apporoximate Weight - 3000Kg.

SPECIFICATION:
Max. Accomodate Dia. (Working) - OD 500mm
Max. Drilling Capacity (U-Drill) - 40mm
Width Of Base - 375mm,
Axis Travel ( X / Y / Z ) - 500mm / 500mm / 400mm
Axis Guideways ( X / Y / Z ) - Box Guideways / Hardened & Ground / 35 LM Guideways
Spindle To Chuck Distance - 300mm,
Table Size - 300 x 350
Clamping Chuck -  300 x 4 Jaw Manual Chuck,
Controller - Siemens 808D Milling,
Max. RPM - 2000RPM,
Spindle Main Motor - 10HP
Lubrication System - Auto,
Coolant - Coolant Through Spindle
Overall Dimension (L x W x H) - 2800 x 1900 x 2350,
Apporoximate Weight - 3000Kg.

SPECIFICATION:
Max. Accomodate Dia. (Working) - OD 1000mm
Max. Drilling Capacity (U-Drill) - 55mm
Width Of Base - 600mm,
Axis Travel ( X / Y / Z ) - 1000mm / 1000mm / 400mm
Axis Guideways ( X / Y / Z ) - Box Guideways / Hardened & Ground / 35 LM Guideways
Spindle To Chuck Distance - 350mm,
Table Size - 500 x 500
Clamping Chuck -  600 x 4 Jaw Manual Chuck,
Controller - Siemens 808D Milling,
Max. RPM - 1500RPM,
Spindle Main Motor - 20HP
Lubrication System - Auto,
Coolant - Coolant Through Spindle
Overall Dimension (L x W x H) -  4000 x 3000 x 2800,
Apporoximate Weight - 6500Kg.
